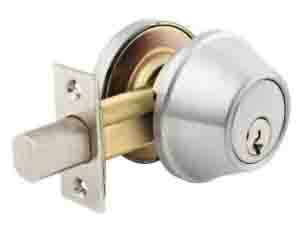

Description

Certification and Compliance:
This product is designed to meet ANSI A156.36, Auxiliary Locks, Grade 2. It is listed by underwriters Laboratories (UL and CUL) for use on 3 hour fire doors when used in conjunction with a rated primary latching device.

… Function – Single Cylinder.
… Housing – Solid zinc cylinder housing.
… Latch Bolt – 1″ (25mm) throw brass deadbolt with hardened, free spinning, steel pin insert.
… Deadbolt Front – 2-1/4″ (57mm) x 1″ (25mm). Plastic spacer supplied for 1-1/8″ (27.5mm) mortise.
… Backset – 2-3/8″ – 2-3/4″ (60mm – 70mm), adjustable.
… Door Thickness – 1-3/8″ – 2″ (35mm – 50mm).
… Strike – 1/32″(2.3mm) steel with wood frame reinforcer.
… Cylinder – Solid brass, drilled for 6 pins pinned to 5. Supplied with 2 nickel plated brass keys per keyed lock.
… Keyway – Schlage C standard.
… Cylinder Options – Accepts 6 or 7 pin, small format interchangeable cores. Supplied less core. Will accept Best or Falcon type cores
… Finish – Satin Stainless Steel
