Description

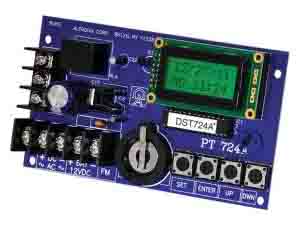

PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.The PT724A are equipped with an independently controlled form “C” relay contact that provides many latching and/or momentaryoperations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule. 12 to 24 volt AC or DC operation. 50 individual daily/weekly events. Block programming capacity accommodates 350 events per week. Standard or Daylight Savings Time settings.

PT724A SPECIFICATIONS
*** Input: 12 to 24 volts AC or DC operation
*** Relay: Form “C” relay contacts are rated 10 amp @120VAC/28VDC. Standby current: 10mA (relay off) 50mA (relay on).
*** Features: EE Prom memory protects against loss of programming due to power failure. Accurate crystal controlled clock. Momentary and/or Latching Events. 50 individually programmed daily/weekly events. Block programming capacity can accommodate a total of 350 events per week. 10 programmable Holiday dates. “First man in” option. Standard or Daylight Savings Time settings. Automatic compensation for leap year.
*** Visual Indicators: Alphanumeric LCD display simplifies programming.
*** Battery Backup: Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA).
*** Electrical: Operating temperature: —20º C to 49º C ambient.

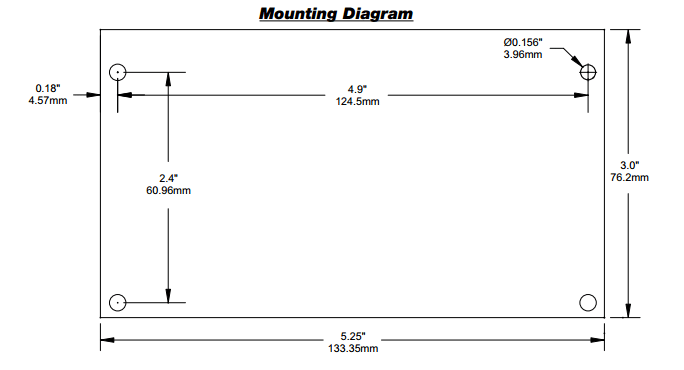

*** Mechanical: Board Dimensions (L x W x H approx.): 3” (76.2mm) x 5.25” (133.35mm) x 1” (25.4mm). Product weight (approx.): 0.48 lbs. (0.22 kg). Shipping weight (approx.): 0.5 lbs. (0.23 kg).
